M7J

M7J is equipped with Rockchip 64-bit processor RK3568J which is configured with dual-core GPU and high-performance NPU, supporting up to 8G RAM. It supports WiFi 6,5G/4G and other high-speed wireless network communications. Having different video input and output interfaces, it is suitable for scenarios such as smart NVR, cloud terminal, IoT gateway and industrial control.It supporting long and stable operation over a wide temperature range from -40°C to 85°C and having various of interfaces. With stable and reliable performance, it can be widely used in industrial equipment.

Feature

  • Efficient and stable processin

    The quad-core 64-bit Cortex-A55 processor, with 22nm lithography process, has frequency up to 2.0GHz, delivering efficient and stable performance for data processing of back-end equipment. There are a variety of storage options, allowing customers to quickly implement the research and production of products.

  • Integrated processor - GPU, VPU, NPU

    Integrated dual-core architecture GPU, high-performance VPU and high-performance NPU. The GPU supports OpenGLES3.2/2.0/1.1,Vulkan1.1. The VPU can achieve 4K@60fps H.265 / H.264 / VP9 video decoding and 1080P@60fps H.265 / H.264 video encoding. The NPU supports one-click switching of mainstream frameworks like Caffe / TensorFlow.

  • Multiple interfaces

    With HDMI2.0, USB3.0, USB2.0, MIPI DSI, MIPI CSI, I2C, UART, GPIO, I2S and other interfaces, it can be directly applied to external device control and expansion.

  • Stable PCBA quality

    The board adopts 8-layer wiring technology and immersion gold technology, stable and reliable performance, suitable for different application environments.

Specifications

parameter
Chip

CPU

Quad-core 64-bit ARM Cortex-A55 processor, 22nm advanced technology, main frequency up to 2.0GHz

GPU

Support ARM G52 2EE

Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

Embedded high-performance 2D acceleration hardware

NPU

0.8Tops@INT8 performance, integrated high-performance AI accelerator RKNN NPU

Support Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet/MXNet mainstream architecture model one-click conversion

VPU

Support 4k 60fps (H.265/ H.264/ VP9) video decoding

Support 1080P 100fps H.265/H.264 video encoding

Support 8M ISP with HDR

RAM

2GB/4GB/8GB DDR4   32Bit wide, frequency up to 1600MHz, support full link ECC

Storage

Support 16GB/32GB/64GB/128GB eMMC 5.1

Support M.2 PCIe 3.0 × 1

Support SATA 3.0 × 1 (extend 2.5 inch SSD/HDD)

Support SD card x1 (extended SD/TF card)

Hardware features
Ethernet

Support dual Gigabit Ethernet(1000Mbps)

Display

Support multi-screen different display, up to three-screen different display output

1 × HDMI2.0, support 4K@60fps

1 × LVDS/MIPI-DSI

1 × EDP1.3, support 2560×1600@60fps output

Audio

1 × HDMI audio output

1 × headphone output

1 × microphone input interface

1 × speaker interface (Support class-D PA to drive speaker, 1.3W)

USB

1 × TYPEC

1 × USB 3.0 Host

2 × USB 2.0 Host

webcam

3 × MIPI-CSI camera input

Interfaces

Multiple UART, I2C, I2S, SDMMC, GPIO

OS/Software
OS

Android/Linux/Debian

Others

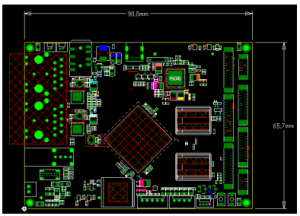

Size diagram

Dimensions

90mm*65mm

Operating Temperature

-40℃-85℃

Storage temperature

-40℃-85℃

Storage Humidity

10%-80 %

PCB specifications

8-layer board design
