M68+1

Quad-core 64-bit Cortex-A55, up to 2.0GHz

Mali-G52 GPU

LPDDR4/LPDDR4X/DDR4/DDR3/DDR3L/LPDDR3, ECC

4KP60 H.265/H.264/VP9 video decoder

1080P60 H.264/H.265 video encoder

8M ISP with HDR

Dual dislplay, LVDS/MIPI-DSI/RGB/eDp/RGB/HDMI2.0/T-CON

It can be applied to products with special requirements for ultra-low power consumption.

Feature

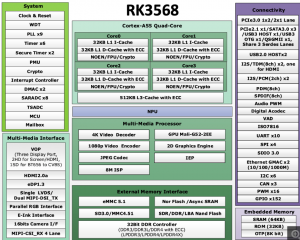

  • RK3568 quad-core 64-bit processor

    Quad-core 64-bit Cortex-A55 processor, 22nm lithography process, main frequency up to
    2.0GHz, providing efficient and stable performance for data processing of back-end devices.
    There are a variety of storage options, allowing customers to quickly implement research and production of products.

  • Powerful wireless network communication

    Support WiFi 6 (802.11ax) wireless network communication, with high-speed transmission,
    Lower packet loss rate and retransmission rate, more effectively reduce data congestion,
    and allow more devices to connect to the network. 5G/4G modules can also be connected,
    Enabling products with higher speed, higher capacity and lower latency communications

  • Integrated coprocessors - GPU, VPU, NPUVPU、NPU

    Integrated dual-core GPU, high-performance VPU and high-efficiency NPU. graphics processor
    Support OpenGL ES3.2/2.0/1.1, Vulkan1.1. VPU can achieve 4K 60fps H.265/H.264/VP9
    Video decoding and 1080P 60fps H.265/H.264 video encoding. NPU supports one-click
    Switching of mainstream frameworks such as Caffe/TensorFlow

  • Dual high-efficiency Gigabit Ethernet ports

    Equipped with dual adaptive RJ45 Gigabit Ethernet ports via internal and external
    Network data can be accessed and transmitted, improving network transmission efficiency,
    Meet the needs of multi-network port products such as NVRs and industrial gateways.

Specifications

Basic
Chip

CPU

Quad-core 64-bit ARM Cortex-A55 processor, 22nm advanced technology, main frequency up to 2.0GHz

GPU

Support ARM G52 2EE

Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

Embedded high-performance 2D acceleration hardware

NPU

0.8Tops@INT8 performance, integrated high-performance AI accelerator RKNN NPU

Support Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet/MXNet mainstream architecture model one-click conversion

VNP

Support 4k 60fps (H.265/ H.264/ VP9) video decoding

Support 1080P 100fps H.265/H.264 video encoding

Support 8M ISP

Support HDR

RAM

2GB/ 4GB/ 8GB DDR4 32Bit wide, frequency up to 1600MHz, support full link ECC

Storage

32GB / 64GB / 128GB eMMC (Optional)

Hardware Features
Ethernet

Support dual Gigabit Ethernet (1000Mbps)

Wireless network

Support M.2 extended 5G

Support Mini PCIe to expand 4G LTE

Support WiFi6 (802.11 ax)

Support BT5.0

Display

Support multi-screen different display, up to three-screen different display output

1 × HDMI2.0, support 4K@60fps

1 × LVDS/MIPI-DSI

1 × MIPI-DSI

1 × EDP1.3, support 2560×1600@60fps output

Audio

1 x HDMI audio output

1 x headphone output

1 × Onboard Microphone Audio Input

USB

1 × USB 3.0 OTG

1 × USB 3.0 Host

2 × USB 2.0 Host

Camera

1 × MIPI CSI camera input

Extended interface

 UART、I2C、I2S、SDMMC、GPIO



Operating system
OS

Android 、Linux

Appearance Specifications
Size

PCB specification

8-layer core board+ 2 layer carrier board

Application

It is mainly suitable for the customized market of IoT gateway, nvr storage, industrial control board, industrial test, industrial control box, karaoke, cloud terminal, vehicle central control and other industries.
