BST30
BST30 equipment is the latest remote communication equipment in the industrial Internet platform, which can facilitate the remote interconnection of field equipment. The device has a light shell and rich interface. Provide a variety of Internet access, can easily achieve physical communication.
Feature
-

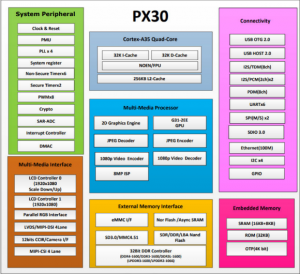

Quad-core Cortex-A35 high-speed processor
Low power consumption and strong compatibility
-
Multiple ways of interconnection
Supports 100 Gigabit Ethernet /WIFI/4G
-
Four-channel serial communication
COM2(RS485)、COM3(RS485)、COM4(RS485)和 COM5(RS485)
Specifications
Basic | |
---|---|
Chip |
|
CPU |
Quad-Core ARM® Cortex-A35 processor |
GPU |
Mali-G31GPU, Support OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0 Built-in embedded high-performance 2D acceleration hardware |
VPU |
Multi-format1080P@60fps (H.265,H.264,VC-1, MPEG-1/2/4, VP8) video decoding Support 1080P (H.264,VP8) video encoding |
RAM |
LPDDR3 1GB/2GB(Optional) |
Storage |
8GB/16GB |
Hardware features | |
---|---|
Ethernet |
100 Mbit/s Ethernet port(1 × RJ45) |
WiFi&BT |
WIFI B/G/N +BLE 4.0 |
USB |
2 × USB 2.0 1 × OTG |
Power supply |
1 × DC 12V |
4G Pcie Interface |
4G cat1/cat2 (GPS Optional) |
SPK |
4PIN speaker interface 2 × 10W class D power amplifier output. |
LED |
4 × LED |
RS458 |
4 × RS458 |
Relay |
4 × Relay |
MIPI |
optional |
TP |
optional |
Small Wireless communication |
Lora BLEmesh 433M zigbee ADC(optional) |
OS/Software | |
---|---|
OS |
Android 8.1/liunx |
Others | |
---|---|
Size diagram |
|
Dimensions |
210×130×38(mm) |
Application | |
---|---|
|
