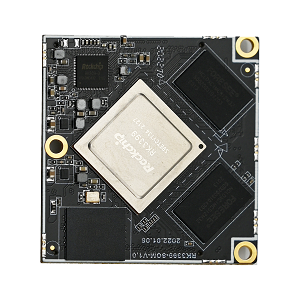

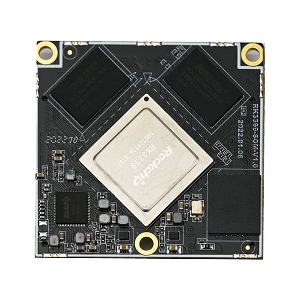

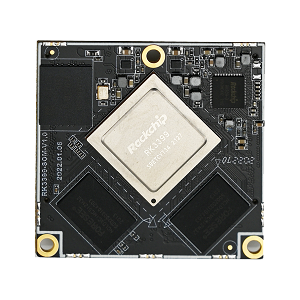

YF3399

RK3399 is a dual-core Cortex-A72, quad-core Cortex-A53 low-power high-performance processor. Can support multi-format video decoding H.264/H.265/VP9 support up to 4Kx2K 60fps, especially the H.264/H.265 decoder supports 10bits. The embedded 3D GPU is fully compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1.

Feature

  • Powerful CPU

    RK3399 is a dual-core Cortex-A72, quad-core Cortex-A53 low-power high-performance processor.

  • Multi-format video decoding

    Support multi-format video decoding H.264/H.265/VP9 support up to 4Kx2K 60fps, especially the H.264/H.265 decoder supports 10bits.

  • State-of-the-art application architecture

    State-of-the-art application architecture consist of PMIC RK809, RK3399, EMMC, LPDDR4

  • Embedded 3D GPU

    Embedded 3D GPU fully compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1

Specifications

Hareware feature
Chip

CPU

 Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU

Frequency is up to 1.8GHz

GPU

Mali-T860 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenCL

Supports AFBC (ARM Frame Buffer Compression)

Memory

Support eMMC 5.1 with HS400, SDIO 3.0 with HS200

Dual channel DDR3-1866/DDR3L-1866/LPDDR3-1866/LPDDR4

Multi-Media

4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Video post processor: de-interlace, de-noise, enhancement for edge/detail/color

Display

Dual VOP: one supports 4096×2160 with AFBC supported; the other supports 2560×1600

Dual channel MIPI-DSI (4 lanes per channel)

eDP 1.3 (4 lanes with 10.8Gbps) to support display, with PSR

HDMI 2.0a for 4K 60Hz with HDCP 1.4/2.2

DisplayPort 1.2 (4 lanes, up to 4K 60Hz)

Supports Rec.2020 and conversion to Rec.709



Interfaces

Dual 13M ISP and dual channel MIPI CSI-2 receive interface

Dual USB 3.0 with type-C supported

PCIe 2.1 (4 full-duplex lanes )

Embedded low power MCU for other application

8 channels I2S supports 8 channels RX or 8 channels TX



Dimension

47mm*50mm

Application

It is very suitable for applications with limited space and high operating performance requirements, such as industrial Internet of Things, smart home, and consumer electronics.
