T100
The T100 is a mid-to-high-end general-purpose SOC board that integrates a quad-core 64-bit ARM architecture Cortex-A55 processor and G52 2EE graphics processor. The main frequency can reach up to 2.0GHz, and the performance has been greatly improved; it adopts 22nm advanced Process, with the characteristics of low power consumption and high performance. Supports full-link ECC, making data safer and more reliable, and meeting the requirements of large-memory product application scenarios.
Specifications
| Parameters | |
|---|---|
| Chip |
Rockchip RK3568 |
| CPU |
Quad-core 64-bit ARM Cortex-A55 processor, 22nm advanced technology, main frequency up to 2.0GHz |
| GPU |
Support ARM G52 2EE Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Embedded high-performance 2D acceleration hardware |
| NPU |
0.8Tops@INT8 performance, integrated high-performance AI accelerator RKNN NPU Support Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet/MXNet mainstream architecture model one-click conversion |
| Video processor |
Support 4k 60fps (H.265/ H.264/ VP9) video decoding Support 1080P 100fps H.265/H.264 video encoding Support 8M ISP Support HDR |
| RAM |
Default 4GB |
| Storage |
Default 16G |
| Hardware features | |
|---|---|
| Ethernet |
Support one Gigabit Ethernet port(10/100/1000Mbps, POE port) Support three built-in 10/100Mbps port |
| Display |
Support multi-screen different display 1 × HDMI2.0, support 4K@60fps 1 × MIPI-DSI/LVDS interface |
| USB |
1 × USB 2.0 OTG 2 × USB 2.0 Host(build-in) 1 × USB 3.0 Host |
| Other ports |
1 × Touch Panel port 1 × TF card slot |
| System Software | |
|---|---|
| OS |
Android11 or Linux optional |

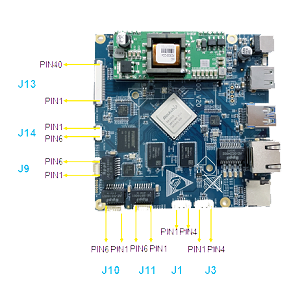

| 3.Interface Definition | |
|---|---|

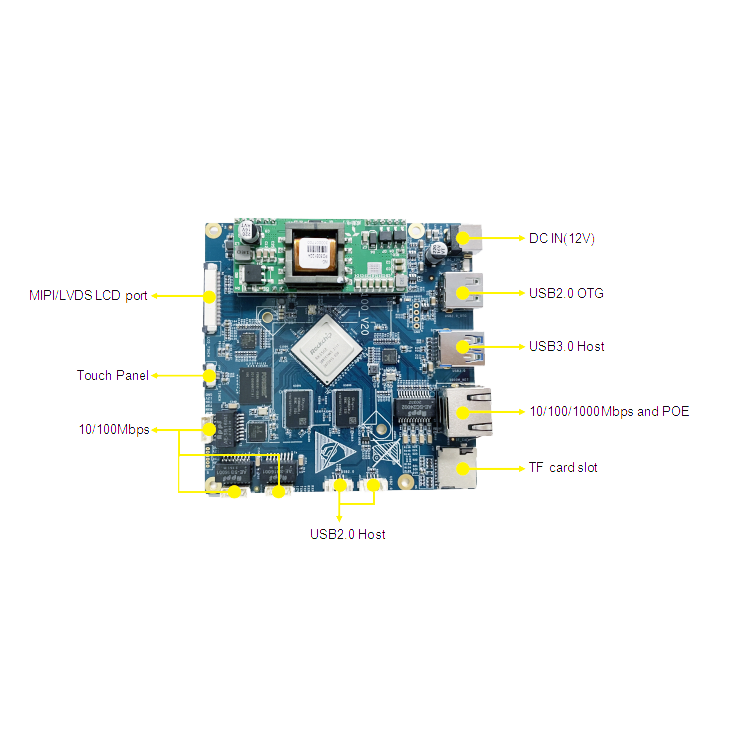

| Photos |
|
