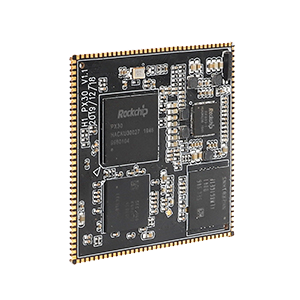

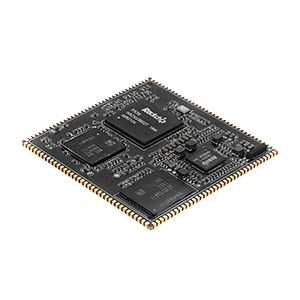

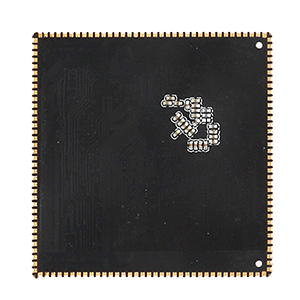

BST-PX30
Quad-core Cortex-A35
Mali-G31 MP2 GPU
DDR4/DDR3/DDR3L/LPDDR3/LPDDR2
1080P H.265/H.264/VC-1/MPEG/VP8 video decoder
1080P H.264/VP8 video encoder
MIPI-DSI/LVDS/RGB interface, dual VOP
1x8ch I2S/TDM, 1x8ch PDM, 2x2ch I2S
It is Rockchip’s first cost-effective 64-bit quad-core A35 application processor for industrial applications. It has a long life cycle and high cost performance, and can meet the needs of most industries.
Feature
-
Low power consumption
Rockcip PX30 industrial grade 62-bit low-power processor, with quad-core Cortex-A35, dual-core Cortex-A35, dual-core Mali-G31 GPU
-
Powerful hardware capabilities
supports multiple operating systems
-
Rich interfaces
can be matched with a far-field microphone array board to realize AI intelligent voice.
-
Strong Video display
supports dual VOP(dual screen display),supports multi-format 1080P 60fps video decoding(H.265,H.264,VC-1, MGPE.264,VPG-1/2/4,VP8 format)video encoding
Specifications
| Parameters | |
|---|---|
| Chip |
|
| CPU |
Quad-Core ARM® Cortex-A35 processor |
| GPU |
Mali-G31GPU, Support OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0 Built-in embedded high-performance 2D acceleration hardware
|
| VPU |
Multi-format1080P 60fps video decoding (H.265,H.264,VC-1, MPEG-1/2/4, VP8) 1080P video coding, support H.264,VP8
|
| RAM |
DDR3 (1GB/2GB)
|
| Storage |
eMMC 5.1 (8GB/16GB/32GB/64GB/128GB) |
| Hardware Features | |
|---|---|
| WiFi&BT |
WiFi&BT interface, can expand WiFi&Bluetooth function |
| Dsiplay |
Support RGB/LVDS/MIPI-DSI interface |
| Audio |
1 x SPDIF Digital audio interface for audio output |
| Ethernet |
100 M bps Ethernet interface |
| USB |
1 x OTG，1 x USB2.0 HOST |
| IR |
Support infrared remote control function |
| Interfaces |
Build-in I2C、UART、SPI、SDIO3.0、USB2.0、PWM、RMII、 I2S (Support 8-channel |
| OS/Software | |
|---|---|
| OS |
Android/Linux |
| Apperance Specification | |
|---|---|
| Size |
|
| PCB specification |
8-layer board design |
| Application | |
|---|---|
| Multiple -function |
|
