YF3399

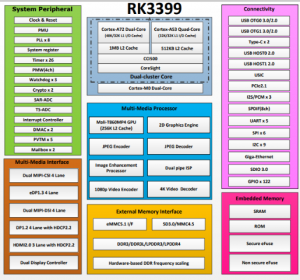

The CPU of the RK3399 motherboard is characterized by its big little core architecture, big dual-core Cortex-A72 and quad-core Cortex-A53 small core structure. The maximum capacity is 8GB, 32bit wide. Supports full-link ECC, making data safer and more reliable, and meeting the requirements of large-memory product application scenarios. The core board adopts 8-layer wiring technology and immersion gold technology, with stable and reliable performance, suitable for different application environments.
Feature
-
RK3599 six-core 64-bit processor
The RK3599 configured with dual-core Cortex-A72 and quad-core Cortex-A53 processor and G52 2EE graphics processor, has frequency up to 1.8GHz, low power consumption and high performance delivering efficient and stable performance for data processing of back-end equipment.
-
Integrated co-processors — GPU, VPU, NPU
It is integrated with dual-core architecture GPU, high-performance VPU and high-performance NPU. GPU supports OpenGL ES1.1/2.0/3.0/3.1; VPU can achieve 4K 60fps H.265/VP9 video decoding ,4k 30fps H.264 video decoding and 1080P 60fps H.265/ H.264 video encoding; NPU supports Caffe/TensorFlow, etc. One-click switching of mainstream architecture models.
Specifications
| Parameters | |
|---|---|
| Chip |
|
| CPU |
The RK3599 configured with dual-core Cortex-A72(big) and quad-core Cortex-A53 (little)processor and G52 2EE graphics processor, has frequency up to 1.8GHz. |
| GPU |
Mali-T860 GPU,Support AFBC Support for OpenGL ES 1.1/3.0/3.1, OpenCL and DirectX11.1 |
| NPU |
0.8Tops@INT8 performance, integrated high-performance AI accelerator RKNN NPU Support Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet/MXNet mainstream architecture model one-click conversion |
| VPU |
Support 4k@60fps (H.265/ H.264/ VP9) video decoding Support 1080P H.265/H.264/VP8 video encoding Video post processor: de-interlace, de-noise, enhancement for dge/detail/color |
| RAM |
Support dual channel DDR3/DDR3L/LPDDR3/LPDDR4 |
| Storage |
Support eMMC5.1，SDIO3.0 8GB/16GB/32GB/64GB (Optional) |
| Hardware features | |
|---|---|
| Ethernet |
2 × RJ45 Ethernet (100Mbps) |
| WIFI&BT |
Support 2.4GHz / 5GHz dual-frequency, 802.11 a/b/g/n/ac/ax Wi-Fi + BT 5.0 Module |
| Display |
1 × HDMI 1 × MIPI-LCD |
| Audio |
3 × SPK 1 × earphone |
| USB |
1 × USB 3.0 OTG 2 × USB 2.0 Host 1 × TYPE C |
| Webcam |
1 × MIPI-CAMERA |
| FAN |
2 × FAN |
| Extension ports |
Multiple UART, TP, CAN, RS232, 485, DEBUG, Optocoupler intput, Open-drain output |
| OS/Software | |
|---|---|
| OS |
Android 7.1 、Linux |
| Others | |
|---|---|
| Size diagram |
|
| Dimensions |
135mm*130mm |
| Power Supply |
12V / 3A |
| Operating Temperature |
-10℃-60℃ |
| Storage Temperature |
-20℃-70℃ |
| Storage Humidity |
10%-80 % |
| PCB specifications |
8-layer board design |
