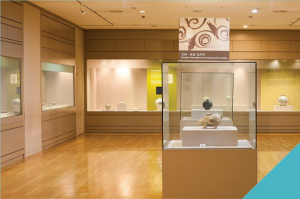

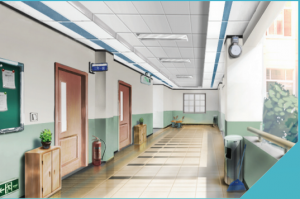

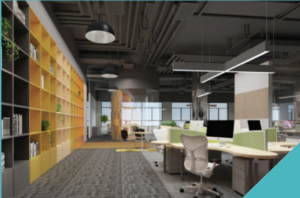

This miniature smart server is a technology-friendly solution for various industries, which is a new revolution to traditional motion and presence sensors in public spaces. It provides a guarantee for the precise realization of “turn on when people come and turn off when people leave”, such as lights and air conditioners. It can be widely used in personnel detection in tall and large spaces, such as airports, schools, museums, office buildings, etc.
Compatible with 90% IP cameras on the market.
True presence sensing.
Millisecond-level response, flexible configuration, and real-time effect.
Not disturbed by ambient temperature and high-frequency signals.
Provide standard protocols to facilitate linkage with third-party systems.
Easy to transform and low construction cost.
Dual Cortex-A72+ Qual- Cortex-A53 big and small CPU architecture，frequency up to 1.8GHz
ARM Mali-T860 MP4 Qual GPU
Support OpenGL ES 1.1/2.0 /3.0/3.1, OpenVG1.1, OpenCL, DX11
Support 4K VP9 and 4K 10bits H265/H264 Video decoding，up to 60fps
1080P Multi-format video decoding (WMV, MPEG-1/2/4, VP8)，
Support 6ch 1080P@30fps decoding
1080P video encoding，Support H.264，VP8 format，
Support 2ch 1080P@30fps encoding
Video post processor: de-interlacing, denoising, edge/detail/color optimization.
2 x 10 / 100 / 1000 Mbps （RJ45）
1 x HDMI, supports 4K@60HZ output and HDCP 1.4/2.2
1 x TYPEC （OTG）
1 x USB3.0
2 x USB2.0
3 x RS485 ports (Phoenix seat EC501R-3.81)
1 x PCIE port (for connecting SSD)
DEBUG port *1
1 x DC 12V power input interface
Reset button *1
